KU Band Flat Panel Satellite Antenna
Out of stock
- Estimated Delivery Small Items : 5 - 15 business days
- Estimated Delivery Large Items : 25 - 45 business days
- Free Shipping : On all orders

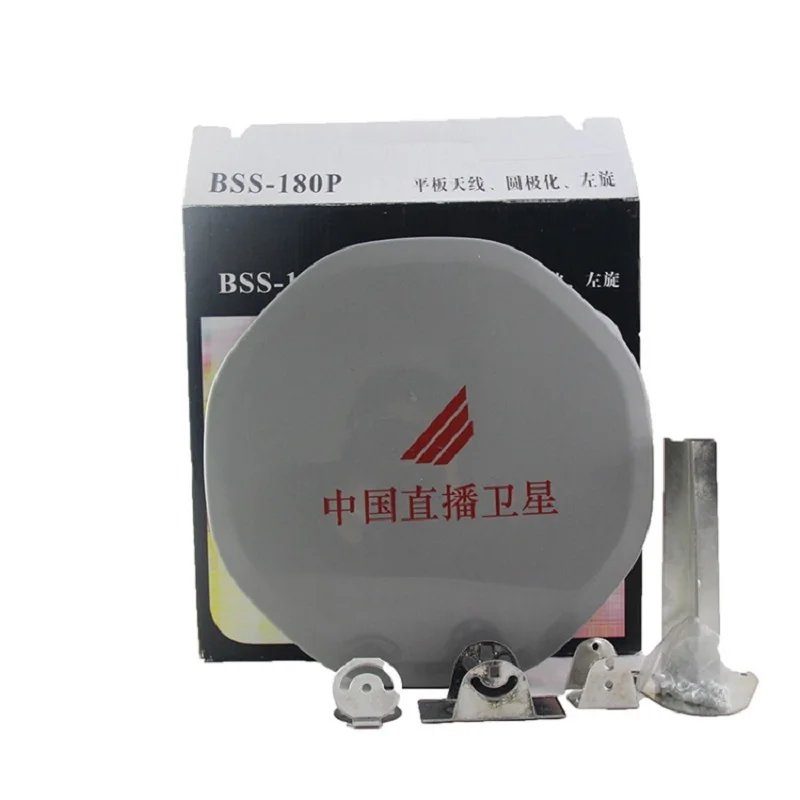

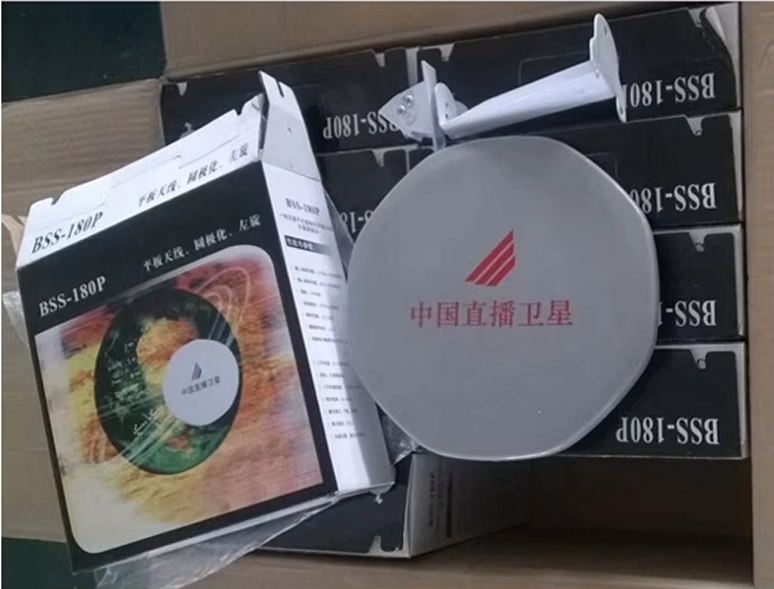

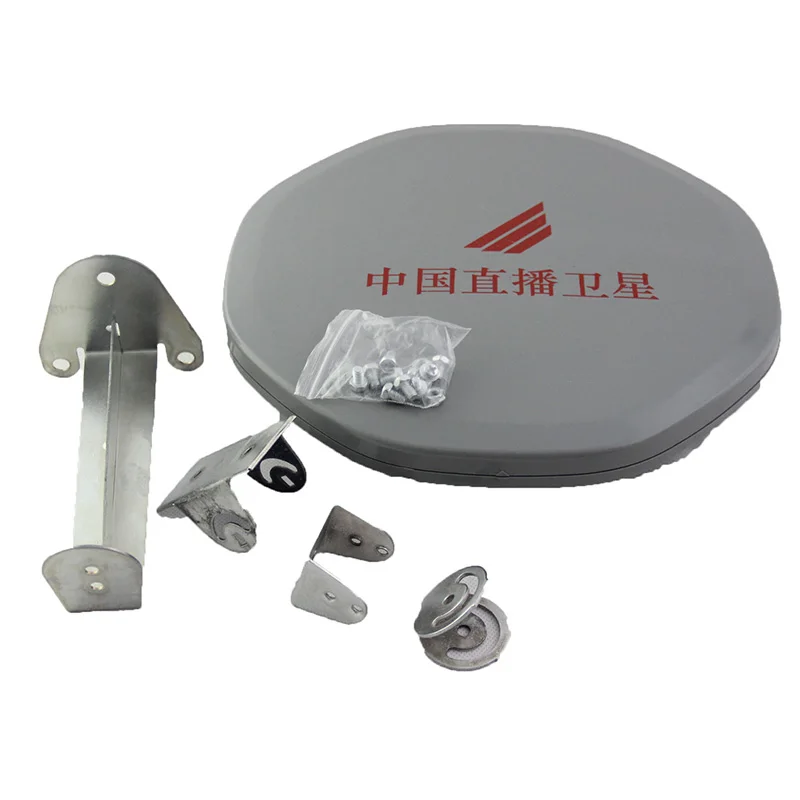

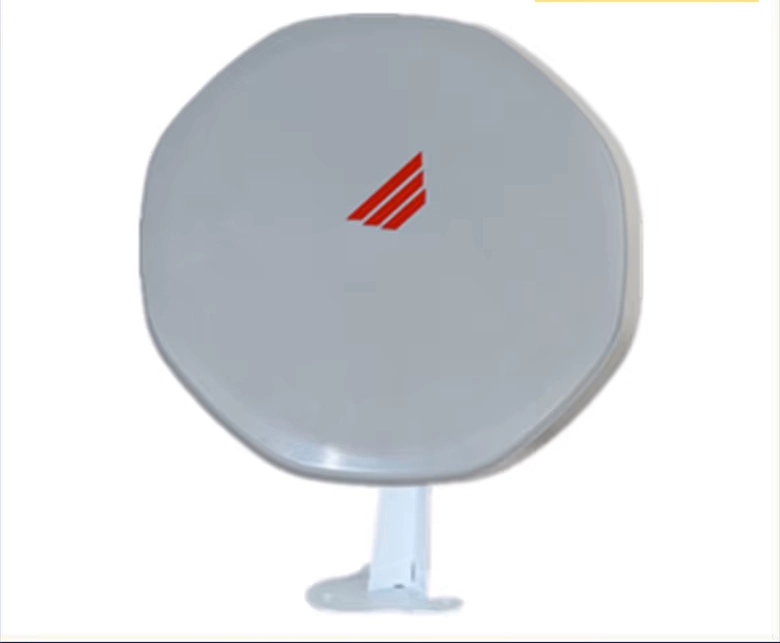

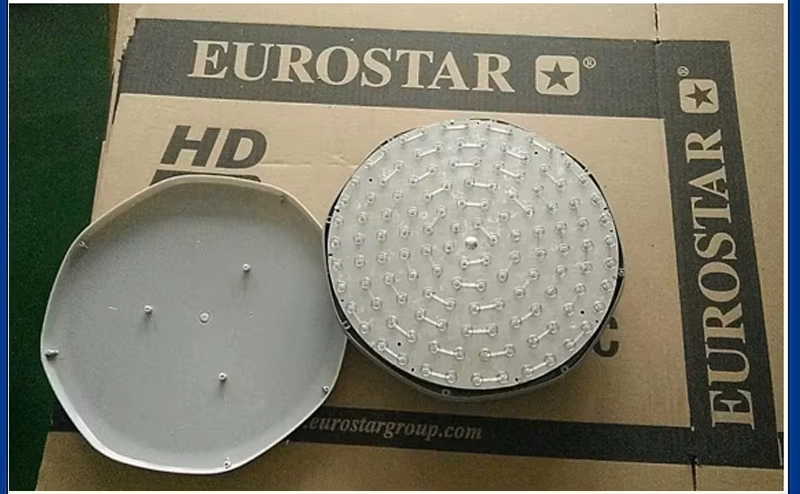

Mini 26cm KU Band Flat Panel Circular Polarized Antenna for High Definition Satellite TV Reception with China Live HD 1080P Receiver Dish
Product Description
1: Lnb
Input frequency : 11.7-12.2GHz
L.O. frequency : 10.75GHz
Output frequency : 950-1450MHz
Gain : 60db(min)
Noise : 0.9db(max)
Output Impedance : 75Ω
Output Connector : F female connector
Operating Temperature : -40C to +70C
Relative Humidity : 0-95%
2: Antenna

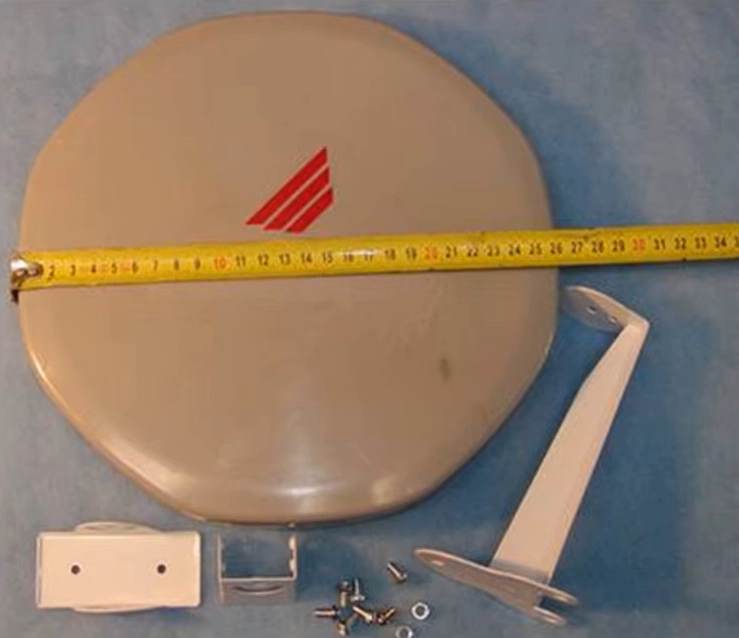

Diameter : 26cm
Gain : 31db
Elevation Alignment : 0°- 90°
Azimuth Alignment : 360°
Operating Temperature : -40C to +70C
Relative Humidity : 0-95%
Specification
- With USB Wifi: No
- Package: Yes
- Type: DIGITAL
- High Definition: Yes
- FTA(Free To Air): Yes
- Model Number: BT-682
- Brand Name: PG
- Origin: Mainland China
- Certification: None
- Material: AL
- Waterproof ability: Good
- Key words: ku Band LNB satellite antenna
- Feedhorn: Can be Feed plate or with bracket
- Packing: Standard export carton for ku Band LNB antenna
- Input frequency: 11.7-12.2Ghz
- Output frequency: 10.75Ghz
- Factory: Anhui bowei eletronics technology Co.,ltd
