* Smart Touch Control & Intelligent Power Adjustment:Smart touch control with intelligent power adjustment ensures precise temperature and energy efficiency.
* Suburban Water Heater Element|Instant Heating & Unlimited Hot Water:Enjoy unlimited hot water with instant heating, ensuring a comfortable bath or shower experience.
* Energy Efficiency Grade: Grade Four:Energy-efficient with a Grade Four rating, this water heater helps save on electricity bills.
* Multiple Protection Features:Equipped with eight major protections, this water heater prioritizes safety in your bathroom.
* IPX4 Waterproof & Tempered Glass Panel:IPX4 waterproof design with a durable tempered glass panel for safe, easy-to-clean use.

Product Type: intelligent instant electric water heater

Material: tempered glass panel

Operating voltage: 220V/50Hz ~ 60Hz

Heating Power: 8000W

Maximum temperature: 55°C

3-speed power adjustment: 6000W ~ 7000W ~ 8000W

Smart type: smart chip

Intelligent Power Adjustment: the intelligent chip automatically matches the power according to the water temperature.

Control mode: touch button

Waterproof grade: IPX4

Requirements for electronic instruments: ≥(60) A

Power cord requirements: 6 mm² standard copper wire

Net Weight: 3kg

Product Size: 395x225x65mm

Colour classification: black, white, light yellow

Electronic English Manual: If you need an electronic English manual, please contact the seller.

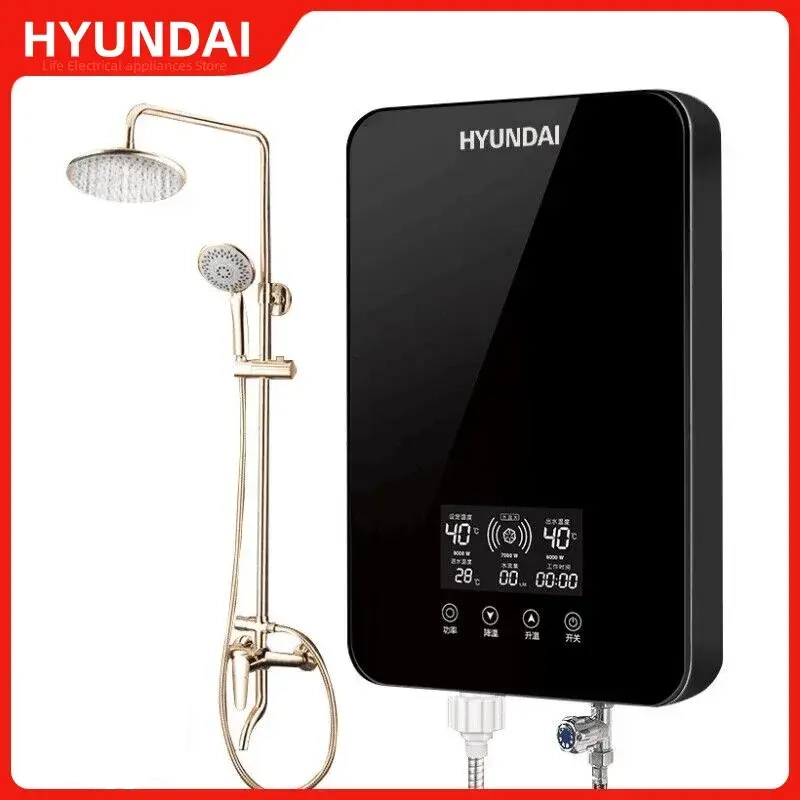

HYUNDAI Intelligent electric water heater ~ Instant heating ~ Full English display screen

①: Three-gear option ~ 6000/ 7000/8000
②: Large amount of water ~ Enjoy the Bath
③: 3 seconds instant heat ~ High power is more stable
④: High thermal efficiency ~ UZ steel heating element
⑤: Precise temperature control ~ One-machine multi-purpose
⑥ : Small and easy to install ~ Can be installed anywhere
⑦: IPX4 waterproof grade ~ Not afraid of watering
⑧: Double Electric Wall ~ Don’t worry about leakage
⑨: Eight major protections ~ Safe bath

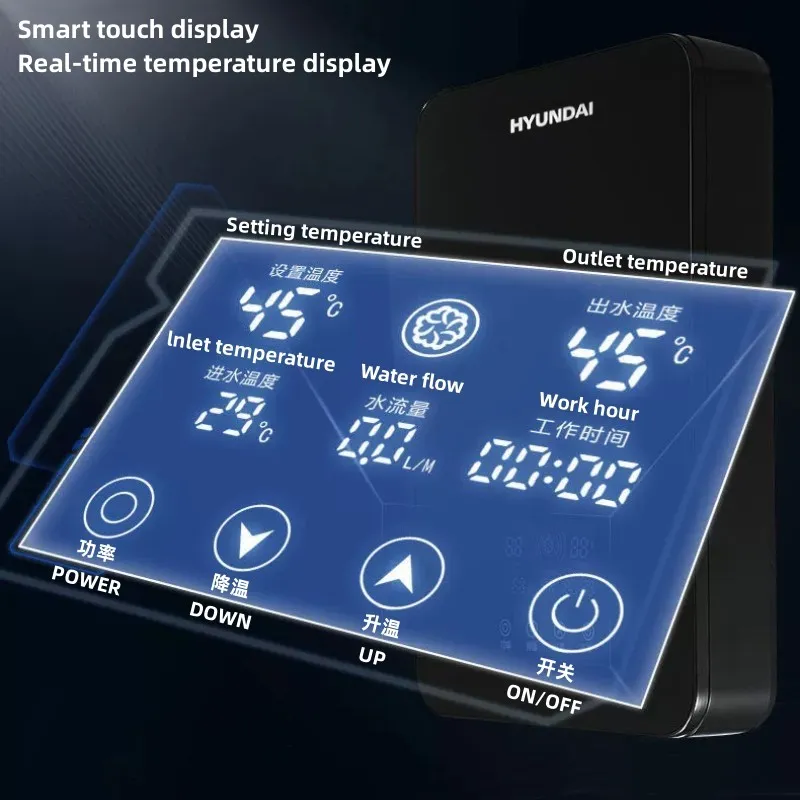

Inductive touch screen ~ Temperature, water flow, time, real-time display
Gao Qing LED display screen ~ Comfortable and clearer
Introduction to touch key functions
Power Regulation ~ Press for 3 seconds to enter the adjustment state
The temperature increases and the temperature decreases.
ON/OFF

Plenty of water ~ Enjoy the Bath ~ Instant heating fast heating ~ infinite hot water

8000w-variable frequency fast heating ~ Fast heat in 3 seconds, no waiting for Bath
Is the temperature too low in winter and the hot water comes slowly?
High-power heating, no fear of winter!
Summer 6000W ~ Spring and Autumn 7000W ~ Winter 8000W
Also 46°C, different power in different seasons
Intelligent frequency conversion: After the water heater is turned on, the power is automatically matched according to the water temperature
Save time, electricity and water ~ Faster and more stable heating

One machine for multiple purposes ~ Precise constant temperature
Heating on demand saves more electricity
30 ~ 40℃ ~ wash vegetables and dishes in winter ~ no longer feel the biting cold
35~42 ℃ ~ wash up in the morning and say goodbye to cold water ~ turn on the heat without waiting
35~52 ℃ ~ enjoy bath time ~ unlimited hot water wash if you want

8th generation uz steel ingot heating element
Higher thermal efficiency and more stable heating
Stronger and safer
Water and electricity separation heating, higher thermal efficiency, more stable heating
Thickened and reinforced compared with common electric water heater heating element

Our water heater has a small temperature difference.
Intelligent constant temperature ~ Floating water temperature <1℃
The above data are measured by the laboratory
Tips
1: The outlet temperature of the water heater is determined by the water flow rate, 3L/min
Test results in an ideal laboratory environment
Actual use, such as due to environmental and climate differences in the process
There may be differences in water temperature of water heater;
2: instant-heating electric water heater is on and hot, no need to mix cold water when in use
Generally adjustable temperature range is about 30°C -55°C
3: If the outlet water temperature displayed by the machine does not reach the set temperature during use
The water flow can be appropriately reduced through the water flow control valve to achieve the effect of increasing the temperature.

Small and easy to install ~ Can be installed in various corners
Small and exquisite, no space occupied ~ Portable thin design
Installed in toilet ~ Outside the bathroom ~ Hairdressing shop ~ Kitchen installation

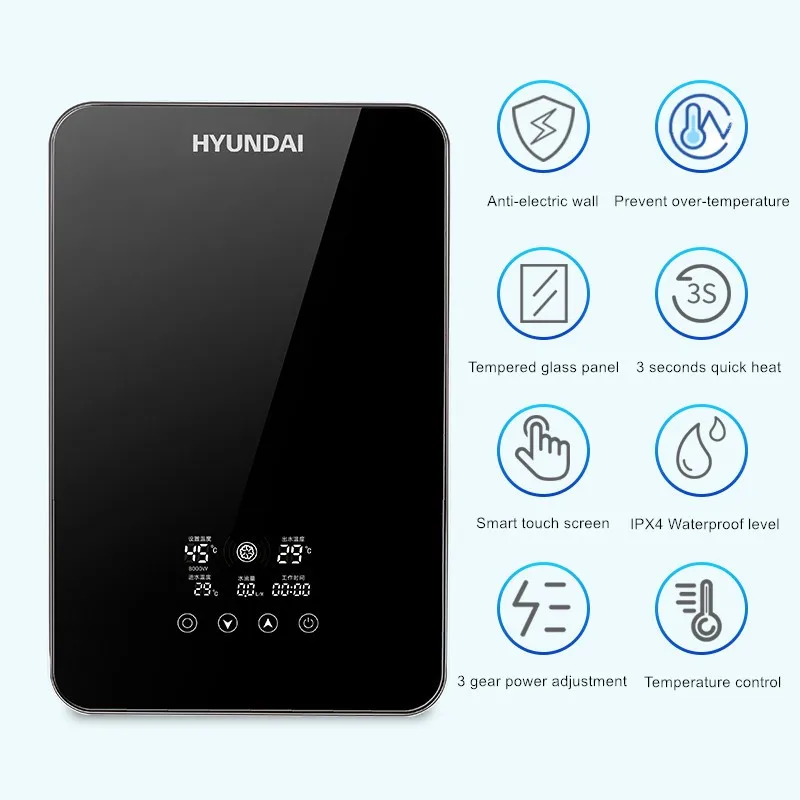

Six protective measures ~ Create a safe bath
①: Leakage Prevention ~ Leakage protection device, leakage is trip
②: Water in and out electricity insulation ~ Leakage protection device leakage trip
③: Anti-over temperature ~ Real-time monitoring of over-temperature power-off
④: Water and electricity separation ~ Water goes by water, circuit goes by circuit
⑤: SPLASH PROOF ~ IPX4 waterproof, easy to use
⑥: Fault self-check ~ Real-Time intelligent monitoring status, screen display

IPX4 waterproof ~ Tempered glass panel. Durable ~ Cold water pipe interface ~ Hot water pipe outlet

Double protection of electric wall
Water inlet and water outlet are fully electricity-proof ~ Two-way check, firmly grasp the safety
The outlet voltage is controlled at 5V. ~ Safe range, Bath safer

Product packaging ~ English Instruction ~ Shower mounting accessories
Generally for waterproof , moisture-proofA layer of yellow tape will be wrapped outside the carton

INSTALL ATION PROCESS
Electric water heater installation location
Check the location of the water pipe and power cord
Plan the length of the cold water pipe, the location and height of the shower
Water heater location, power cord location, tap water pipe location
Mark the installation location according to your requirements

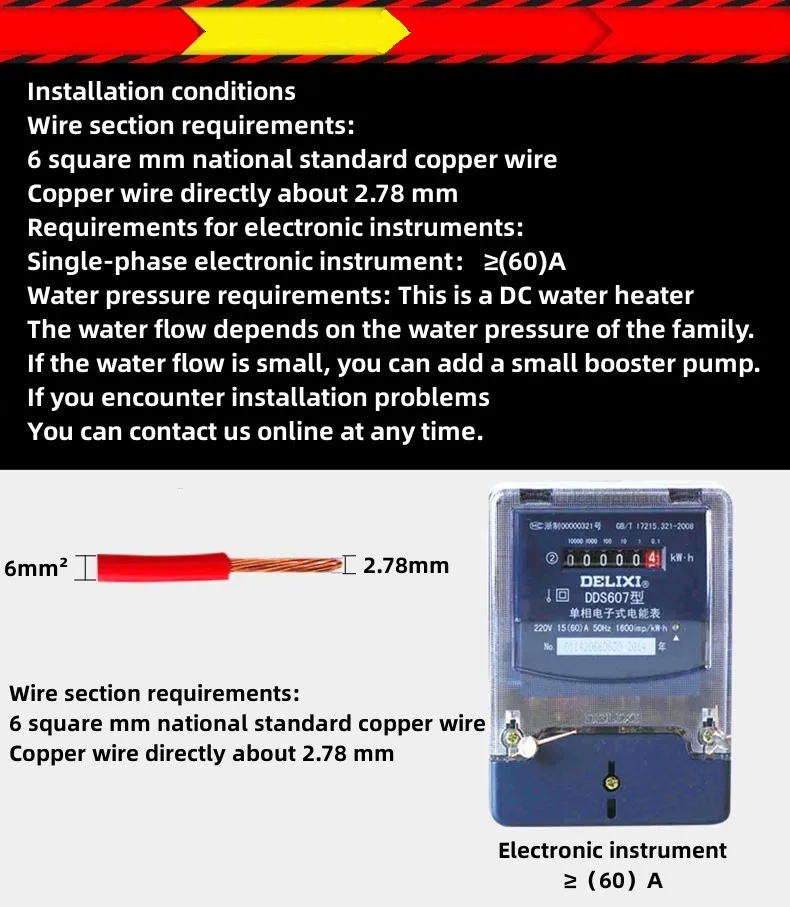

Installation conditions
Wire section requirements:6 square mm national standard copper wire
Copper wire directly about 2.78 mm
Requirements for electronic instruments:Single-phase electronic instrument: ≥(60)A
Water pressure requirements:This is a DC water heater
The water flow depends on the water pressure of the family.
If the water flow is small, you can add a small booster pump.
If you encounter installation problems, please feel free to contact us online.
