Class D Audio Amplifier Kit
Out of stock
- Estimated Delivery Small Items : 5 - 15 business days
- Estimated Delivery Large Items : 25 - 45 business days
- Free Shipping : On all orders

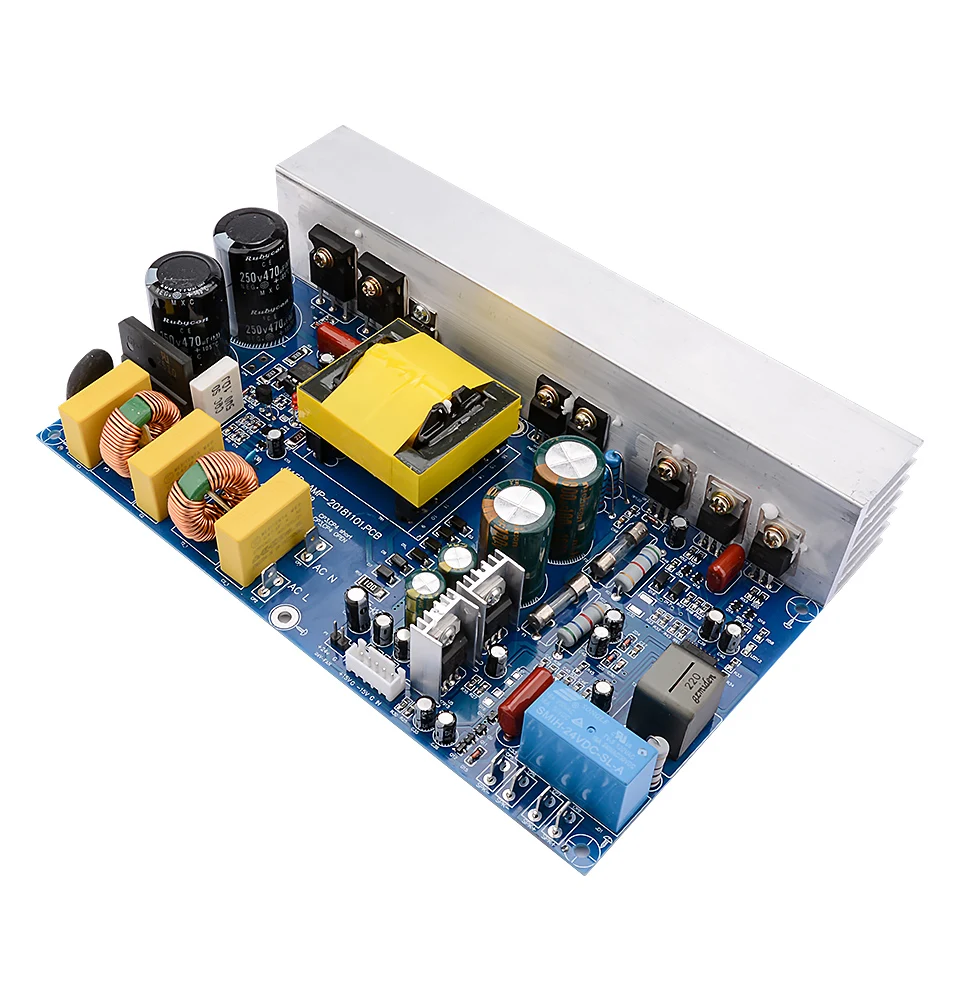

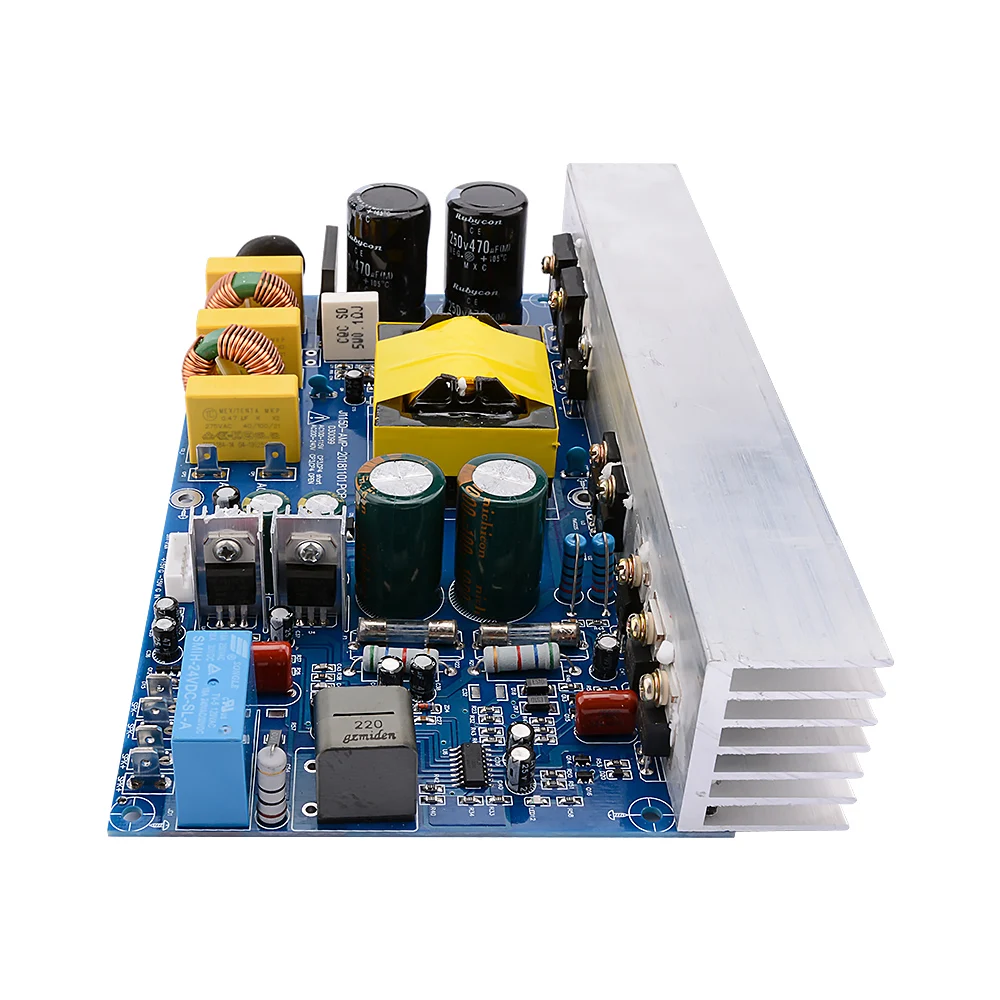

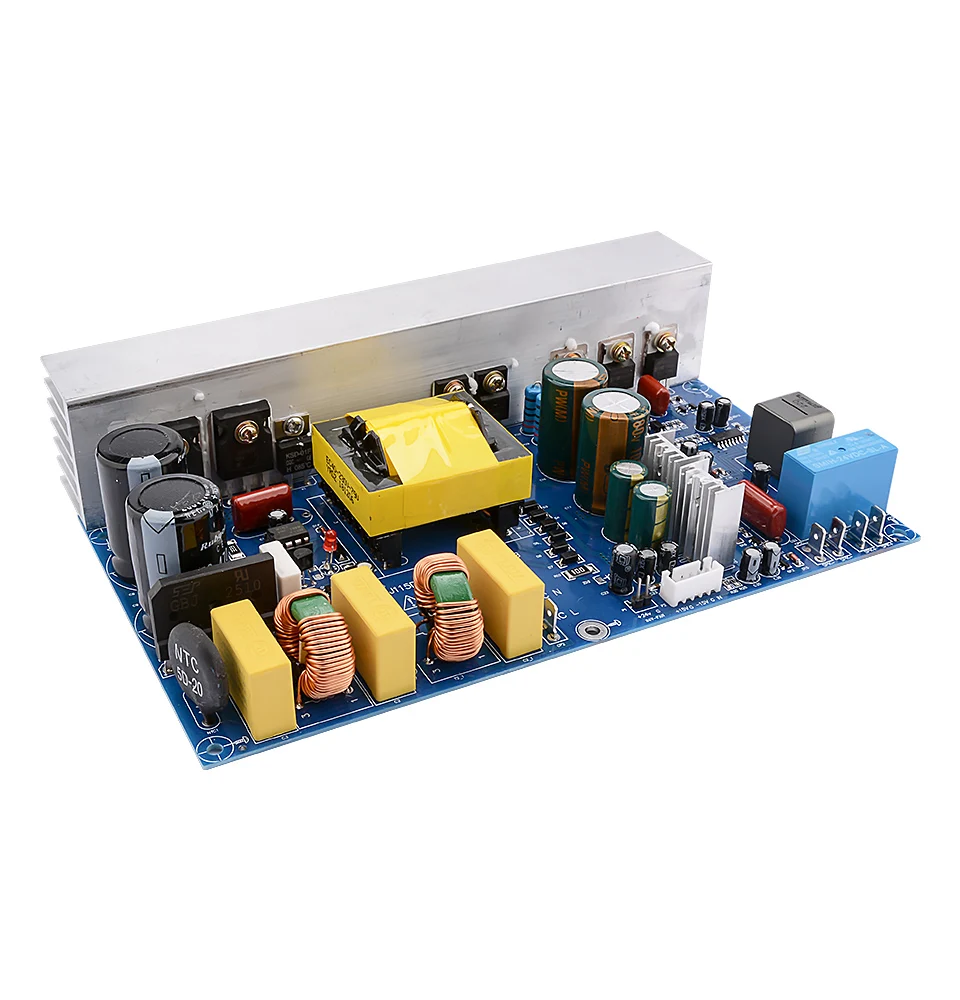

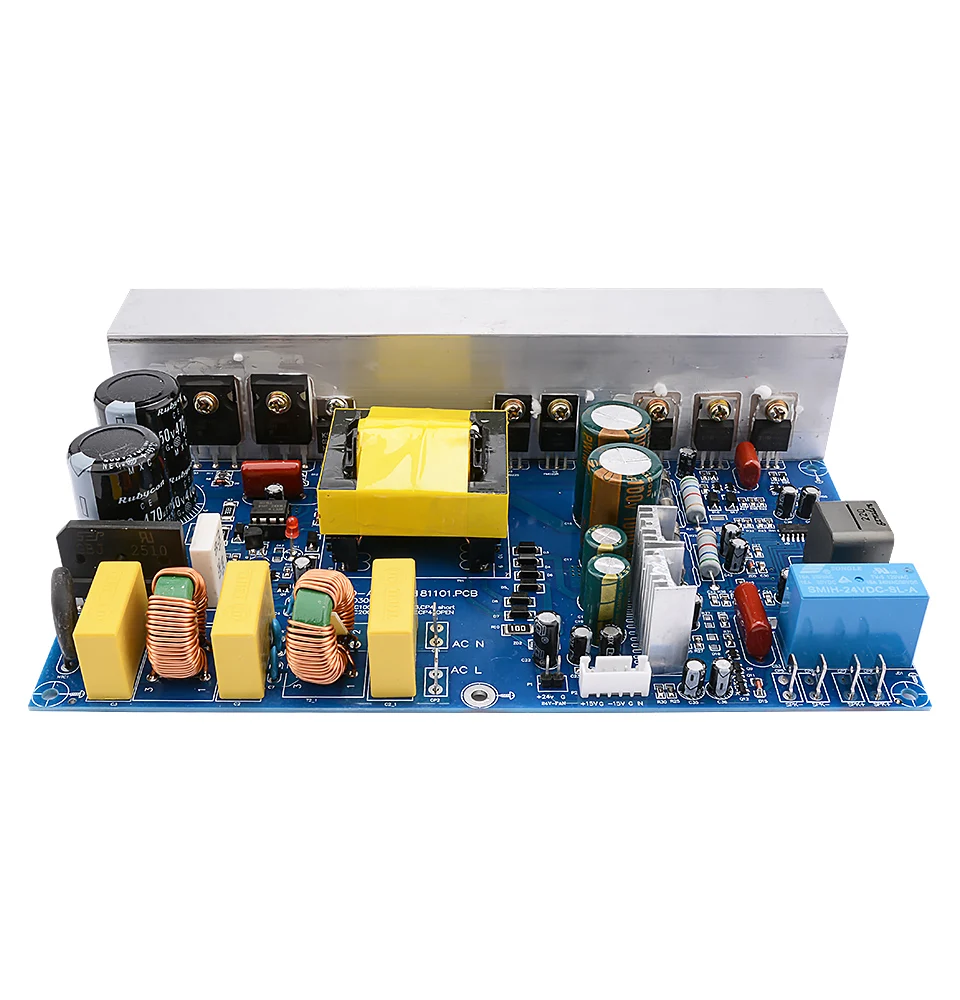

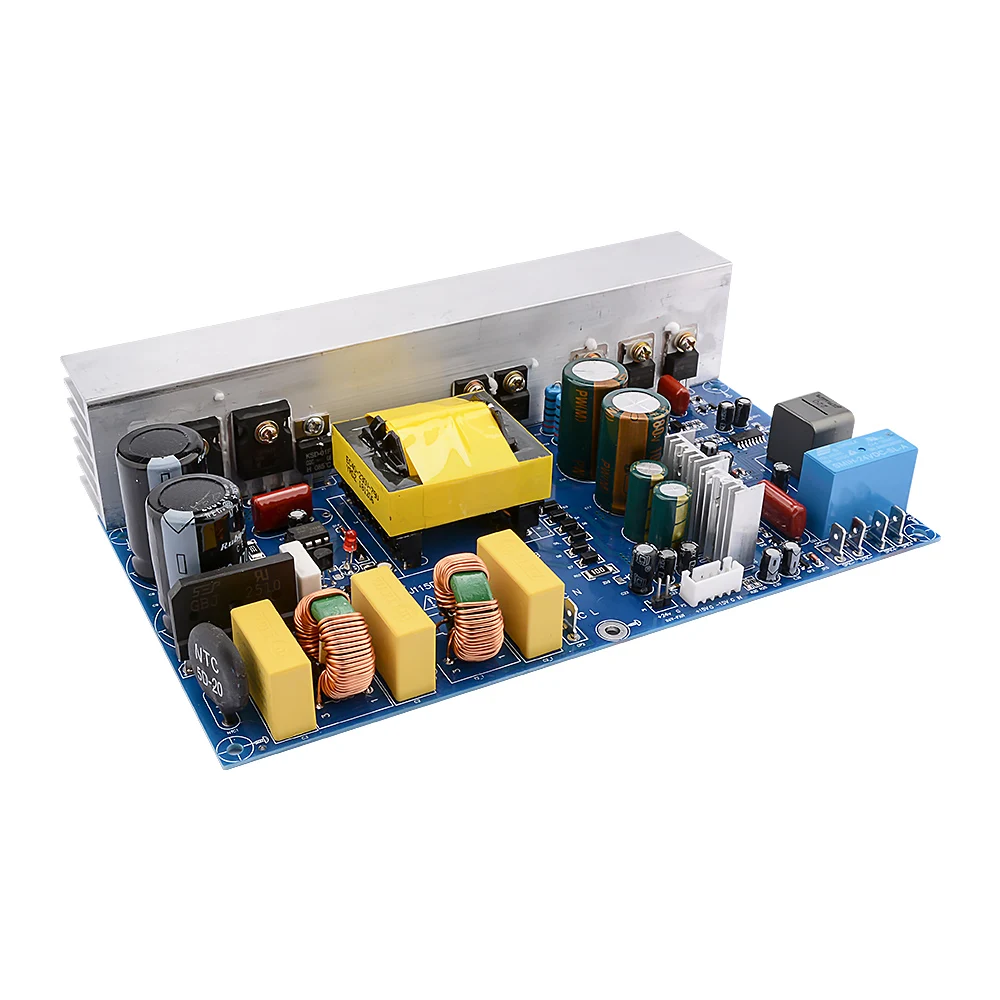

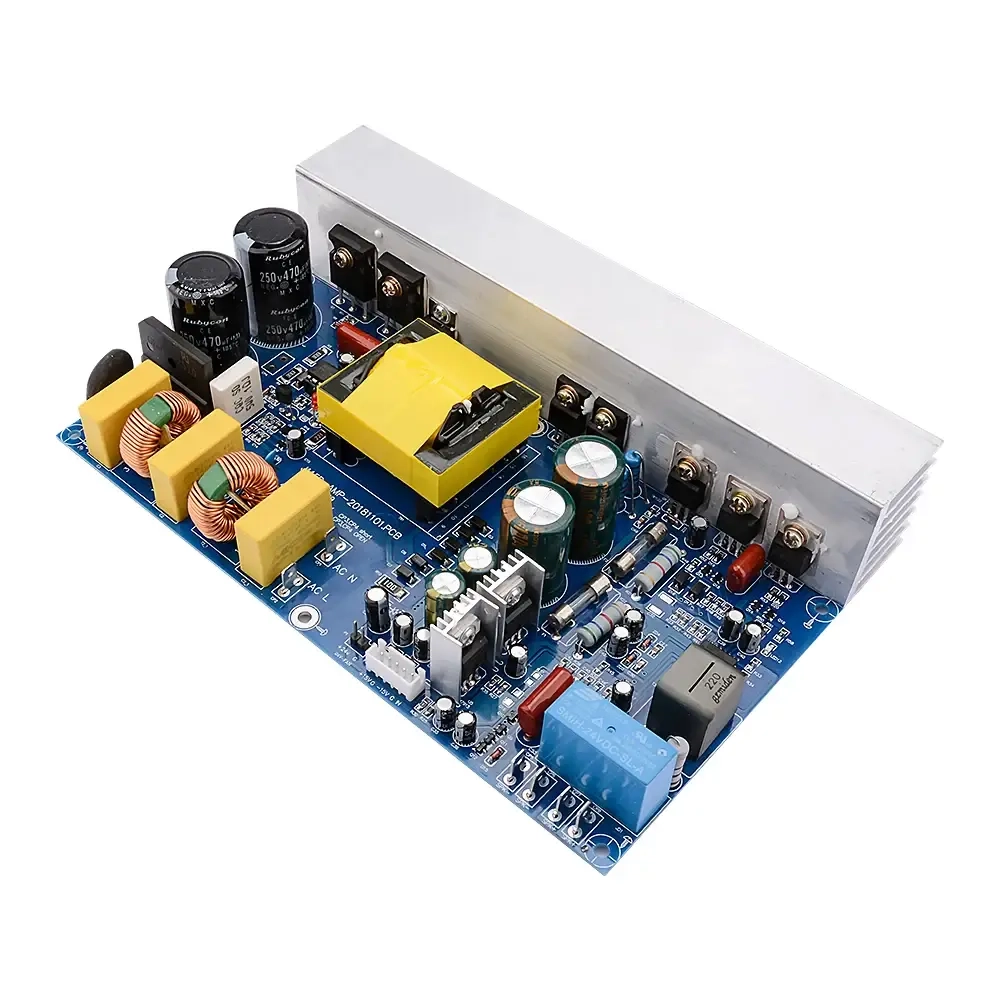

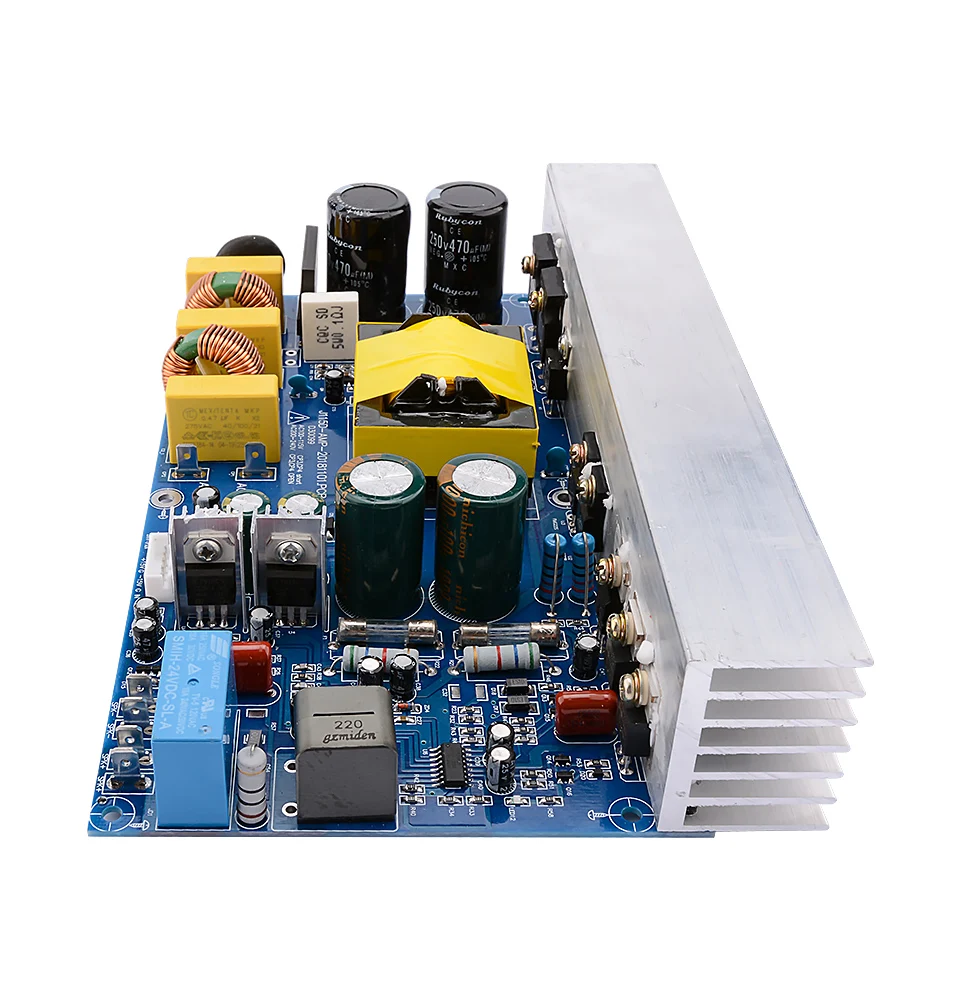

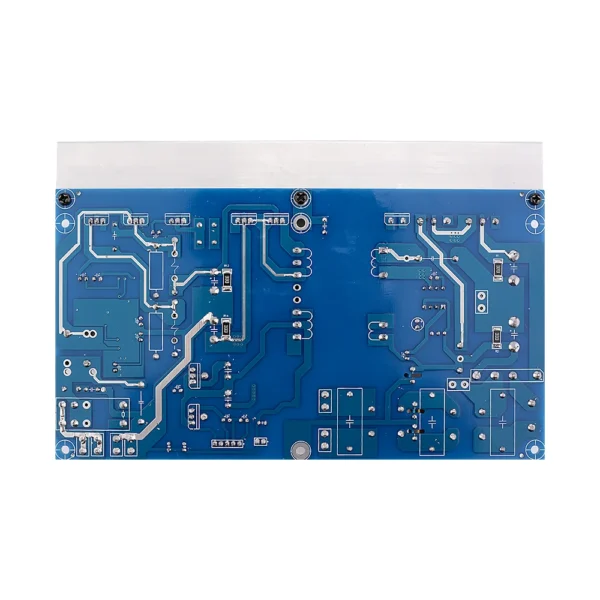

1000W AIYIMA Class D Mono Digital Audio Amplifier Board for Home Theater Speaker System with Power Supply Switch
Product description:
1000W Digital power amplifier WITH switching power supply

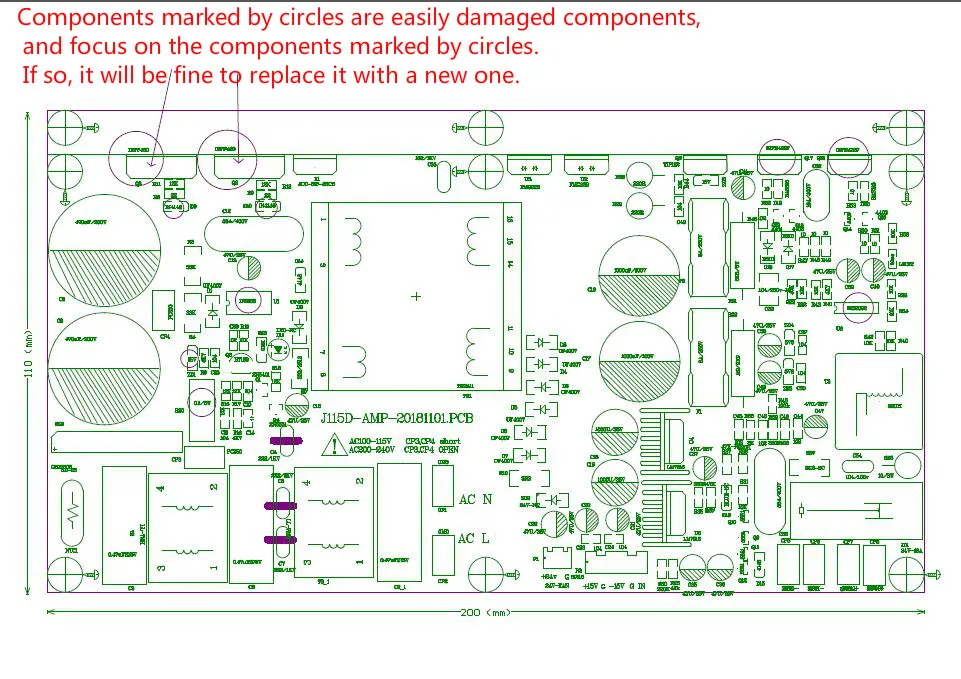

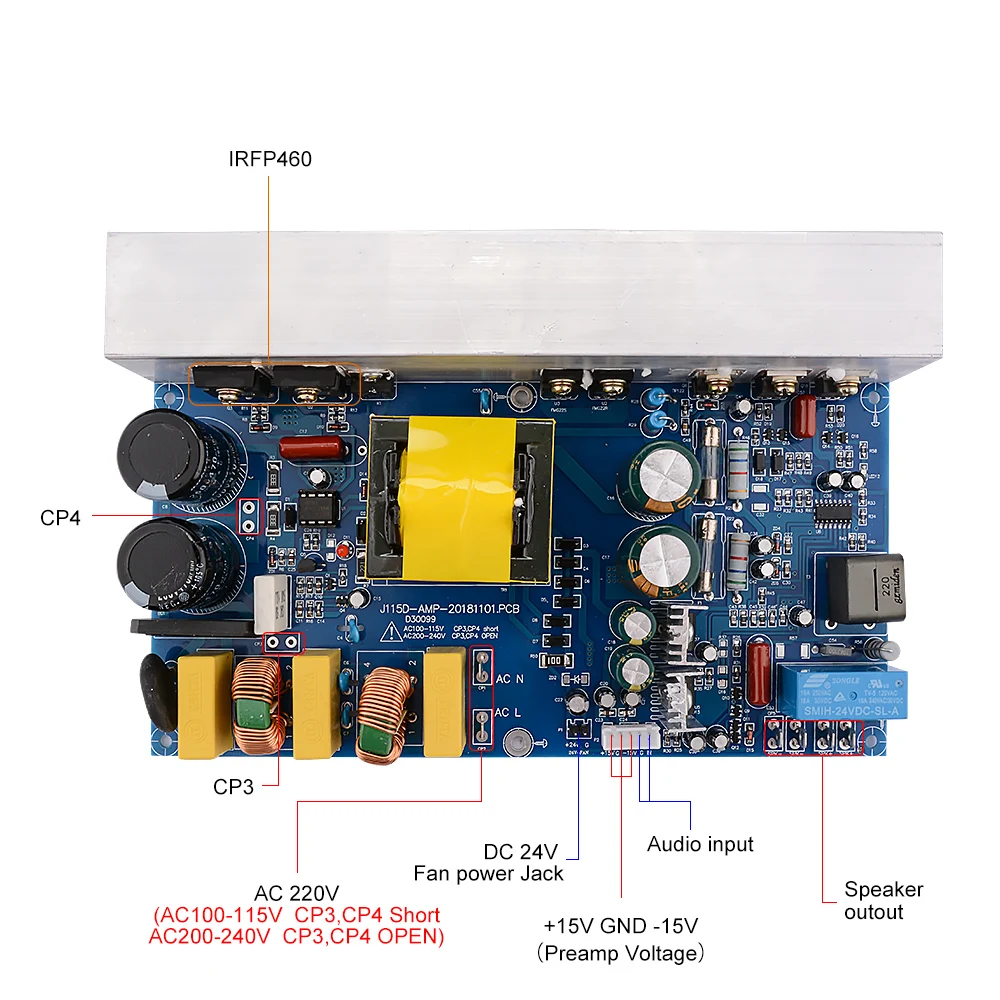

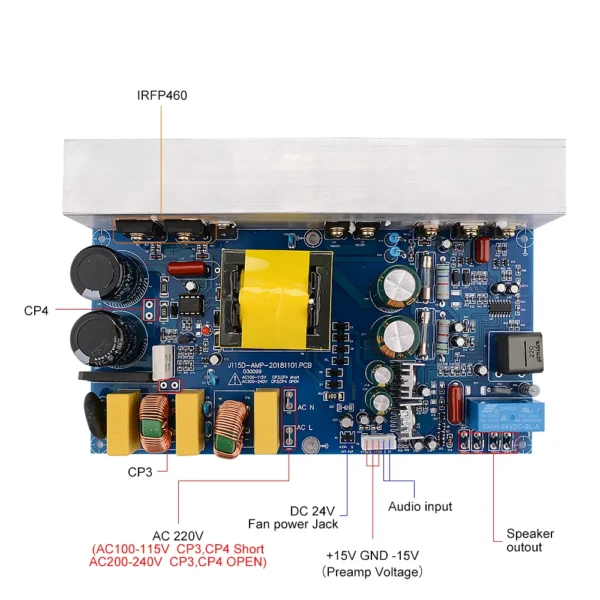

1. The power supply voltage AC220V input(default）/AC110V input
(AC100-120V, AC110V, CP3 CP4 are connected together, 60Hz
AC200-240V,AC220V, CP3 CP4 open)，50Hz
2. Speaker load: 4-8Ω
3. RMS power: 500W/ 4 Ohm， 300W / 8 Ohm
4. Peak power: 1000W / 4 Ohm
5. Channel: Mono
6. Frequency response: 20HZ–20KHZ
7. Pre-voltage output +15v, 0V,-15V
8. Fan voltage output +24V
9. Distortion: THD≤1%
10. Input sensitivity: 1.5V
11. Magnification: 30 times
12. Boot delay, anti-impact sound: 1-3 seconds
13. Speaker output short circuit protection: yes

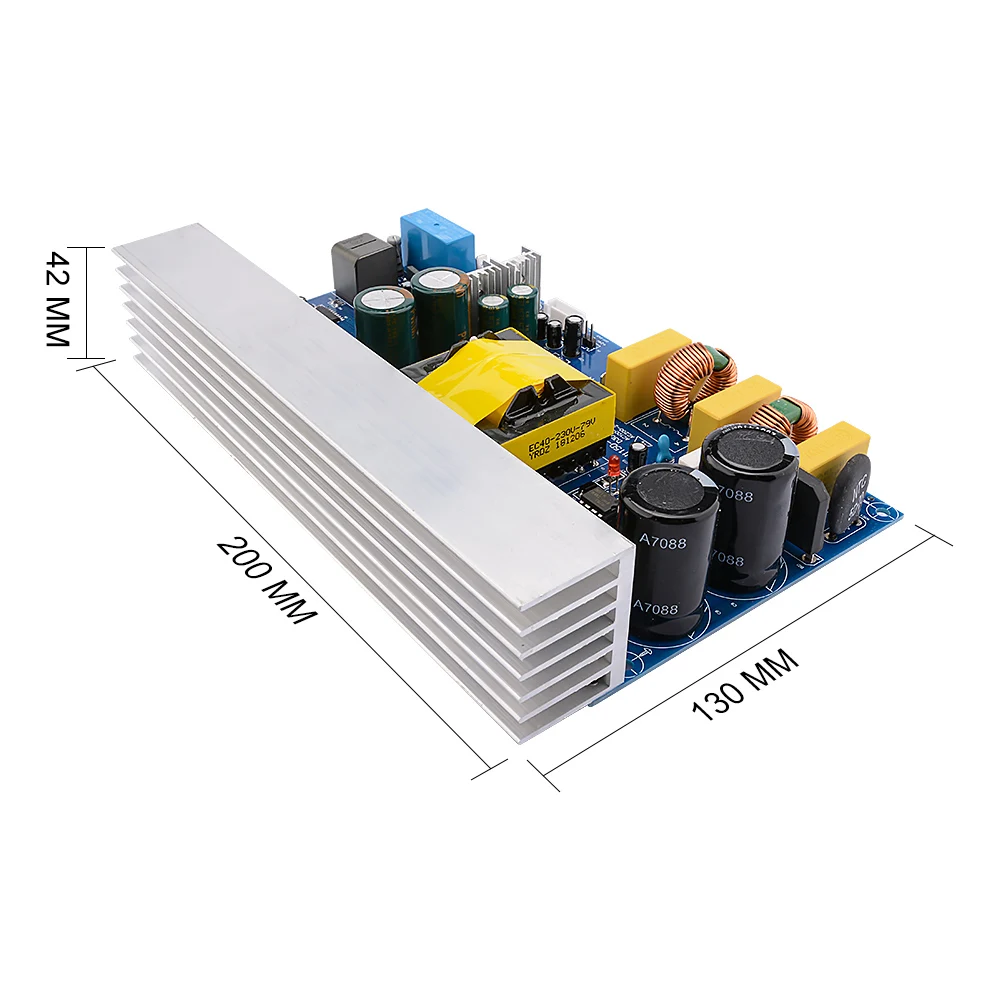

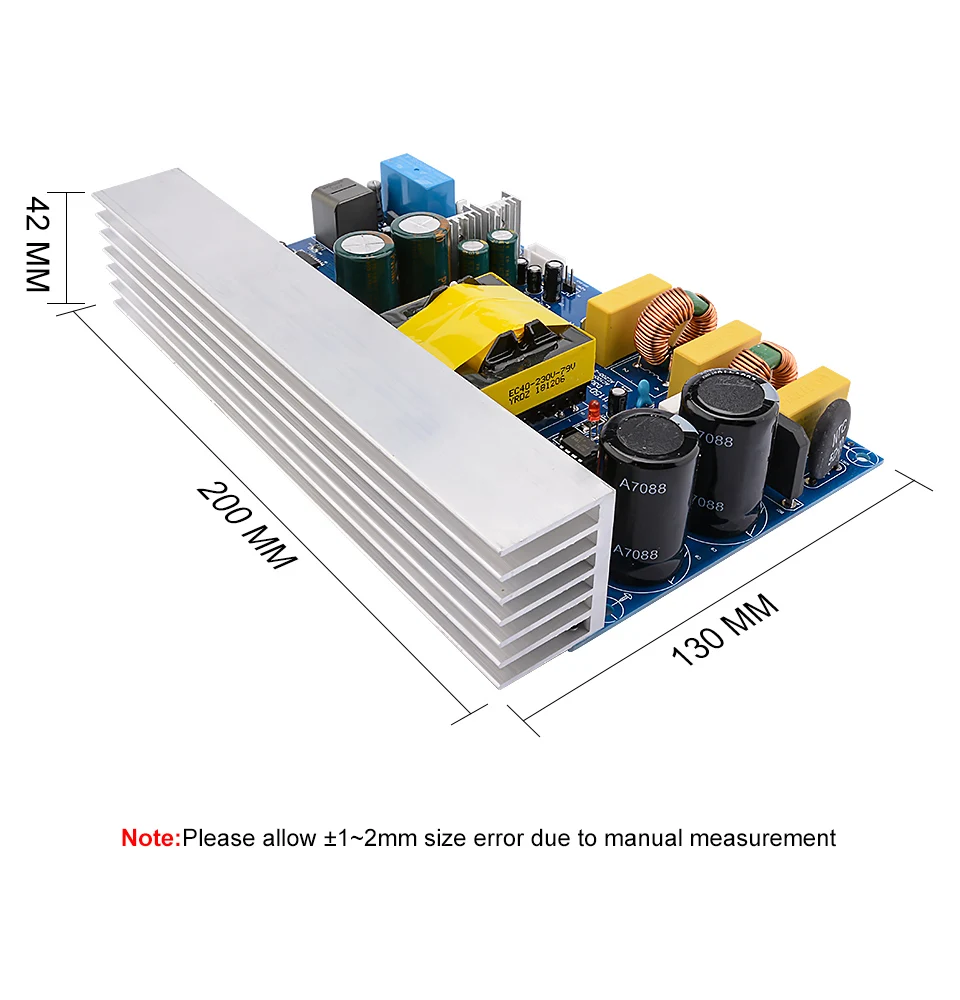

14. Size: 200X130X42mm
Note: Due to the high power of the power amplifier board, a fan (DC24V fan) must be installed for long-term high-power operation. The power is large and the heat is also large.
Features:
1. The power is very large, and the fan needs to be added with heat. From the right digital amplifier section to the left side of the switching power supply section.
2. Temperature protection: The temperature of the radiator rises to 85 °C, the protection starts automatically, and the amplifier stops working. After the temperature of the heat sink drops, the power amplifier automatically starts to work.
3. Overload protection: The load is overweight and will protect!
4. Speaker protection: The output has DC, the relay is disconnected, and the speaker is protected! .
5. Anti-shock: There is NTC thermistor at boot to prevent inrush current!
6. The start relay is delayed.
Package included:
1 x Pcs 1000W Amplifier
Specification
- Hign-concerned Chemical: None
- Package: Yes
- Channels: 1
- Model Number: 1000W Power Amplifier Audio Board
- Maximum Power Per Channel: Above 200W
- Brand Name: Aiyima
- Origin: Mainland China
- Certification: none
- Output power: 1000W
Quick Comparison
| Class D Audio Amplifier Kit remove | 4 channel 4000 watts Audio Power Stereo Amplifier remove | Tube Amplifier Pure Class A Amplifier remove | HiFi Sound Amplifier 1600W Peak Power remove | Bluetooth Subwoofer Sound Amplifier 2.1 remove | |||
|---|---|---|---|---|---|---|---|
| Name | Class D Audio Amplifier Kit remove | 4 channel 4000 watts Audio Power Stereo Amplifier remove | Tube Amplifier Pure Class A Amplifier remove | HiFi Sound Amplifier 1600W Peak Power remove | Bluetooth Subwoofer Sound Amplifier 2.1 remove | ||
| Image |  |  |  |  |  | ||
| SKU | 1005004821442332 | 139020727012261 | 1005005930180118 | 1005009453251074 | 1005002898865292 | ||
| Rating | |||||||
| Price | Original price was: $162.99.$121.99Current price is: $121.99. | $2,159.99 | Price range: $546.99 through $714.99 | Original price was: $81.99.$65.99Current price is: $65.99. | Price range: $371.99 through $389.99 | ||
| Stock |
Out of stock
|
13 in stock
| |||||
| Add to cart | Select options This product has multiple variants. The options may be chosen on the product page | Select options This product has multiple variants. The options may be chosen on the product page | Select options This product has multiple variants. The options may be chosen on the product page | ||||
| Additional information |
|
Related products
-
-
Tube Amplifier Pure Class A Amplifier
Price range: $546.99 through $714.99 -

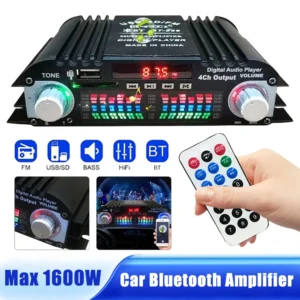

HiFi Sound Amplifier 1600W Peak Power
