Description

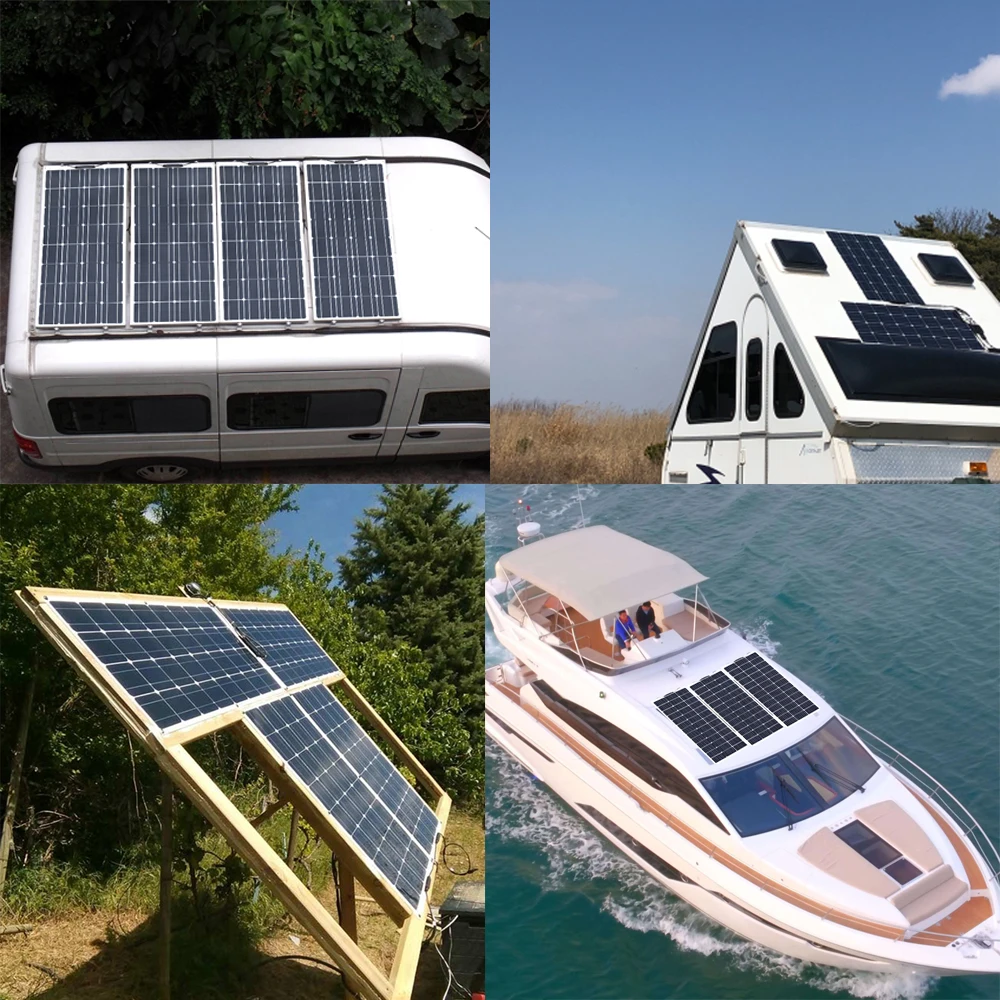

100 W flexible solar panel kit 12v 100 watt 120w 200w for Home Yacht RV Caravan Cabin Boat and 12v Battery Charger




100 Watt Solar Panel only Package Includes:
1 x pcs flexible solar panel
1. 1 pcs flexible solar panel
2. 1 pcs 12v/24v/10A controller
3. 1 set 3m cable with PV connector(2.5mm2)
4. 1 set 3m cable with Alligator clip(2.5mm2)
(200 Watt Kit) Package Includes:
1. 2pcs 100w solar panel
2. 1pcs 12v/24v/20A controller
3. 1 set 3m cable with PV connector(2.5mm2)
4. 1 set 3m cable with Alligator clip(2.5mm2)
5. 1 set 2 in 1 adapter
18V 120W Solar panel Specification
Maximum power(Pmax) 120W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Short circuit current(Isc) 6.8 A
Maximum power voltage(Vmp) 18V
Maximum power current(Imp) 6.6A
Operating temperature(NOCT) 45±2℃
Temperature range -40℃~+80℃
Number of cells 36pcs
Weight 2200g
Size 1170*540*3 mm
Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5




Solar panel
– It can be used as an alternative charger for cars, trucks, caravans, boats, motorcycles, RV batteries or any 12V lead acid battery.
– It is waterproof and can be placed outdoors.
– There are built-in diodes in the Junction Box to help prevent reverse charging.
– You can install this item in your car and keep charging during the day.
– Provides 2 alligator clips and charging cable for all kinds of equipment, emergency lights, advertising lights, traffic lights, electric fans, solar water pumps, motorcycles, boats, etc.

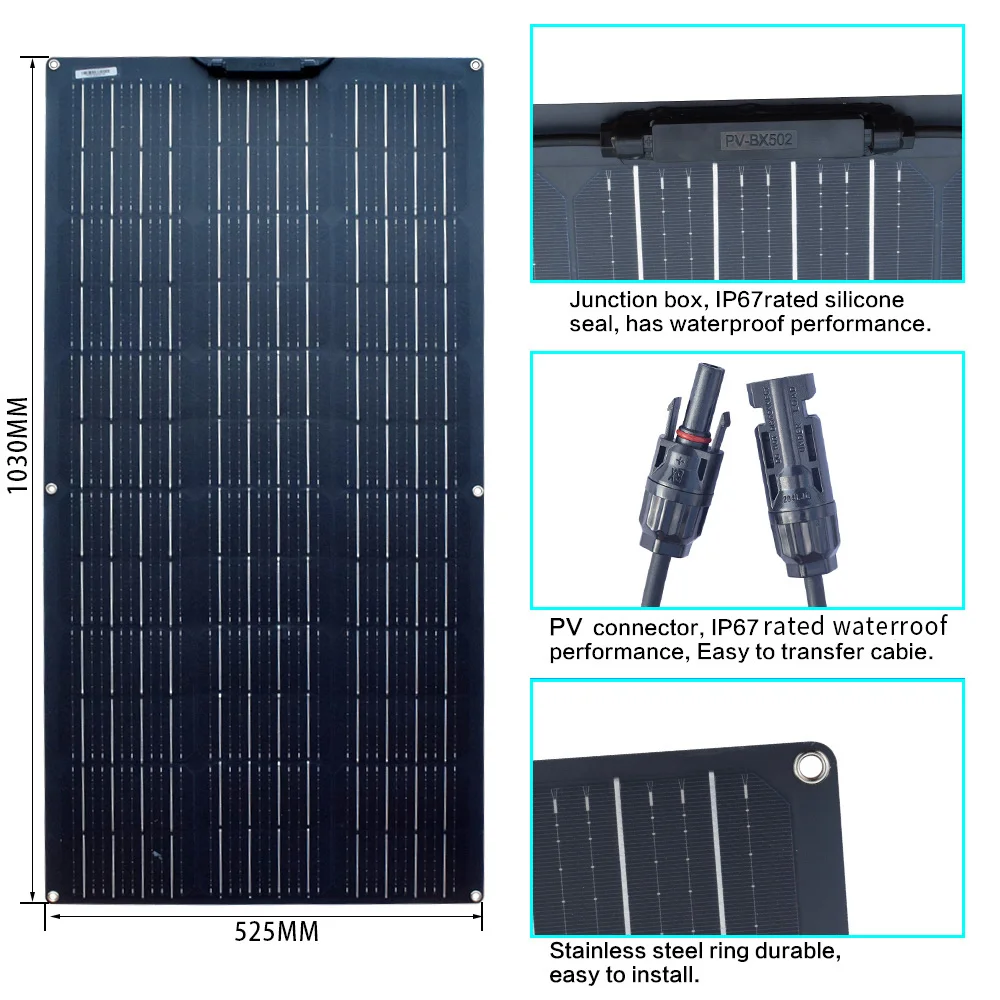

18V 100W Black( 18 V 100 watt Black solar panel)
Maximum power(Pmax) 100W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Short circuit current(Isc) 6.11 A
Maximum power voltage(Vmp) 18V
Maximum power current(Imp) 5.55A
Cell efficiency 21%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃~+80℃
Number of cells 36pcs
Weight 1850g
Size 1030*525*3 mm
Color White
Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5




Schematic diagram of 1 solar panel connected to 12V battery

Schematic diagram of 2 pcs solar panel connected to 12V battery
Schematic diagram of 2 pcs solar panel connected to 24V battery
